Channel Steel Punching And Shearing Machine

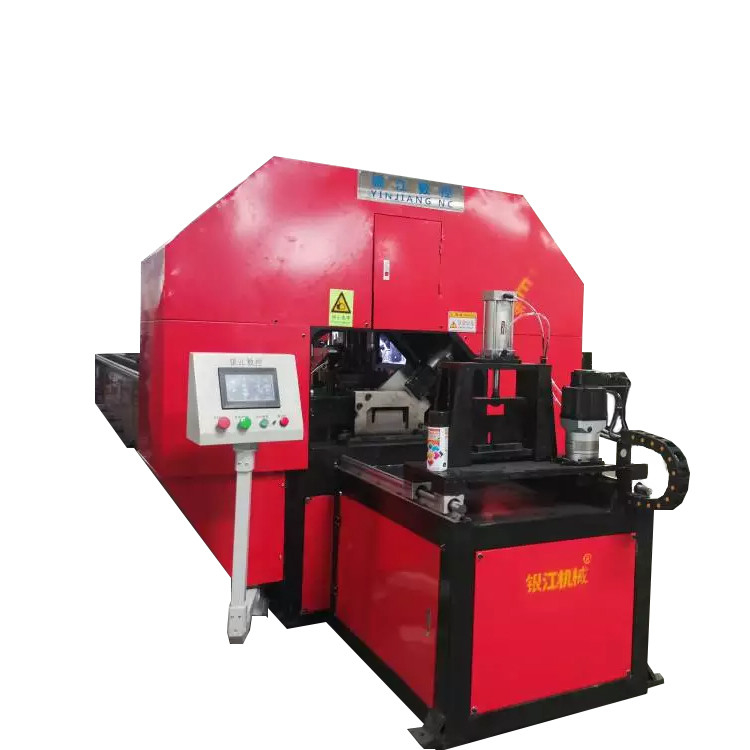

Steel Industrial Cutting And Punching Machine 380V 30/Min Strokes

Name: Steel Industrial Cutting And Punching Machine 380V 30/Min Strokes
Brand: FOSHAN YINJIANG MACHINERY EQUIPMENT CO., LTD.
SKU: YJ-ZD2-140Q2-140S2
Price: 160000 USD
Availability: InStock

Product Details:

Place of Origin:	China
Brand Name:	YingJiang
Certification:	ISO,CE
Model Number:	YJ-ZD2-140Q2-140S2

Detail Information

Place of Origin:

China

Brand Name:

YingJiang

Certification:

ISO,CE

Model Number:

YJ-ZD2-140Q2-140S2

Dimensions:

9200mm X 1100mm X 1750mm

Voltage:

380V

Usage:

Industrial

Material:

Steel

Weight:

3500kg

Warranty:

1 Year

Highlight:

High Light

Highlight:

Industrial cutting and punching machine

Steel cutting and punching machine

380V punch cutting machine

Trading Information

Minimum Order Quantity:

1set

Price:

RMB160000/SET

Packaging Details:

Wooden case packing

Delivery Time:

30 work days

Payment Terms:

L/C, T/T

Supply Ability:

5SET/1month

Product Description

The Punching And Cutting Machine For Channel Steel Features Precise Punching And A Flat Cutting Surface

Description

1. This punching machine employs human-machine interface with 7 inch touch screen. The operation interface is wide and easy to use.

2. The frequency conversion technology is employed, the mould can be changed according to the material of workpiece. The distance between punching holes can be adjusted at will.

3.The punching machine can punch holes in two or more than two shapes at one feeding. Moreover, the punching machine can punch and cut workpiece simultaneously. The punching machine can punch the square hole and round hole in one workpiece without changing the mould.

Feature

1. This process involves using a punch tool to create holes, slots, or other openings in the metal channel material.

2. Shearing is the process of cutting the metal channel material to the desired length or shape.

3. The machine must be able to accommodate the width, depth, and thickness of the channel material being processed.

4. The machine should be able to perform these operations quickly and with minimal material waste.

5. More advanced machines have CNC controls, touchscreen interfaces, and integrated sensors for precision and productivity.

Specification

Type	QA32-8B	QA32-12B
Max.punching force	360KN	900KN
Length of cutter for plate cutting	200mm	300mm
Cutter travel distance	27mm	36mm
Number of strokes	30/min	30/min
Power of electric motor	2.2kw	4KW
Voltage of electric motor	380V(220V/240V)	380V(220V/240V)
Size	9005001100mm	11006001450mm
Weight	500kg	1100kg

Advantage

Steel Industrial Cutting And Punching Machine 380V 30/Min Strokes 0
